Because the dustless conveyor conveys
an object with a chain through the upper part of the rail,
it prevents any foreign material from being originated
from the conveyor itself.
This conveyor is recommended to a painting line and any
other lines which need a clean process condition. |
| |
 |
Main Purpose
Line that needs equipment’s anti-corrosion
Lines for agricultural / livestock / marine
products

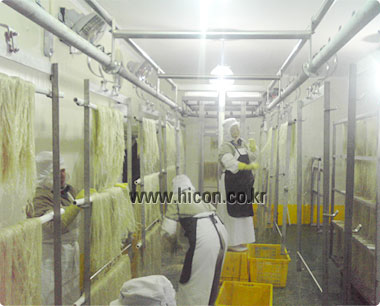

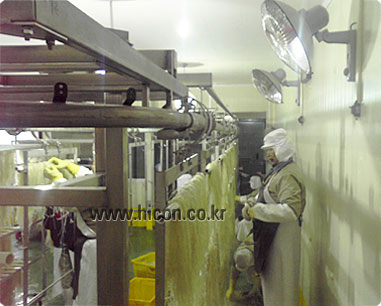

Line for a food production
Line for a food storage
Line that needs a clean process
Line for a painting work
|
|
|
| |
 |
- Max. speed : 15m/min.
- Permissible load : 25~50kg
- Horizontal rail’s standard radius
of
...curvature:600mm
- Rising/descending rail’s standard
...radius of
curvature:600mm
- Average fracture strength : 5,500kgf
- Max. application temperature of chain :
..230? |
|
|
|
| WHEEL
TYPE DRIVE UNITS |
 |

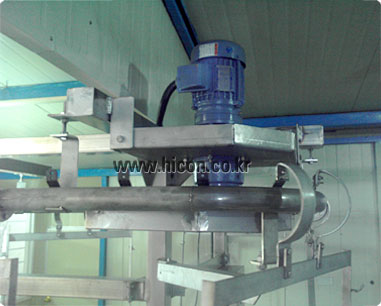

DRIVE
UNITS
We have developed and manufactured the
sprocket type drive unit with our unique technology.
|
|
|
| |
